Controlled Gel Distribution
Distributes traction-enhancing material in a controlled manner to the top of rail to help address low-adhesion conditions.
LB-FOSTER
TGA3 Traction Gel Applicator
Trackside system for applying ALLEVIATE® traction enhancer directly to the top of rail at locations with potential low adhesion.
TGA3 is L.B. Foster's Traction Gel Applicator, designed to distribute traction-enhancing material in a controlled manner at the wheel–rail interface to help restore adhesion.
OVERVIEW
Wheel–rail adhesion enhancement for low-adhesion conditions.
TGA3 works with ALLEVIATE® Rail Traction Enhancer to improve adhesion at low-adhesion locations. This trackside system delivers traction-enhancing material to the top of rail in a controlled manner and can be used across a range of operating environments, including underground mining.
Wheel–Rail Adhesion Enhancement
Works with ALLEVIATE® to help improve grip at the wheel–rail interface and reduce wheel slip and slide events.
Dual Peristaltic Pumps
Uses dual peristaltic pump assemblies to help provide even material distribution to each rail.
Easy Installation & Maintenance
Track-mounted components use quick-release fastenings, while the system is designed for ease of access and maintenance.
PRODUCT PROFILE
Technical data and primary uses.
The final configuration still needs to match your application conditions and on-site technical evaluation.
| System Type | Traction Gel Applicator |
|---|---|
| Hopper Capacity | 75 litres |
| Pump System | Dual peristaltic pump/motor assemblies |
| Power Supply Options | DC 12 V / AC 115–230 V / solar |
| Application Material | ALLEVIATE® traction enhancer |
APPLICATIONS
Designed for real operational requirements.
Low-Adhesion Areas
Applies ALLEVIATE® to the top of rail at locations with potential low adhesion to help restore wheel–rail grip.

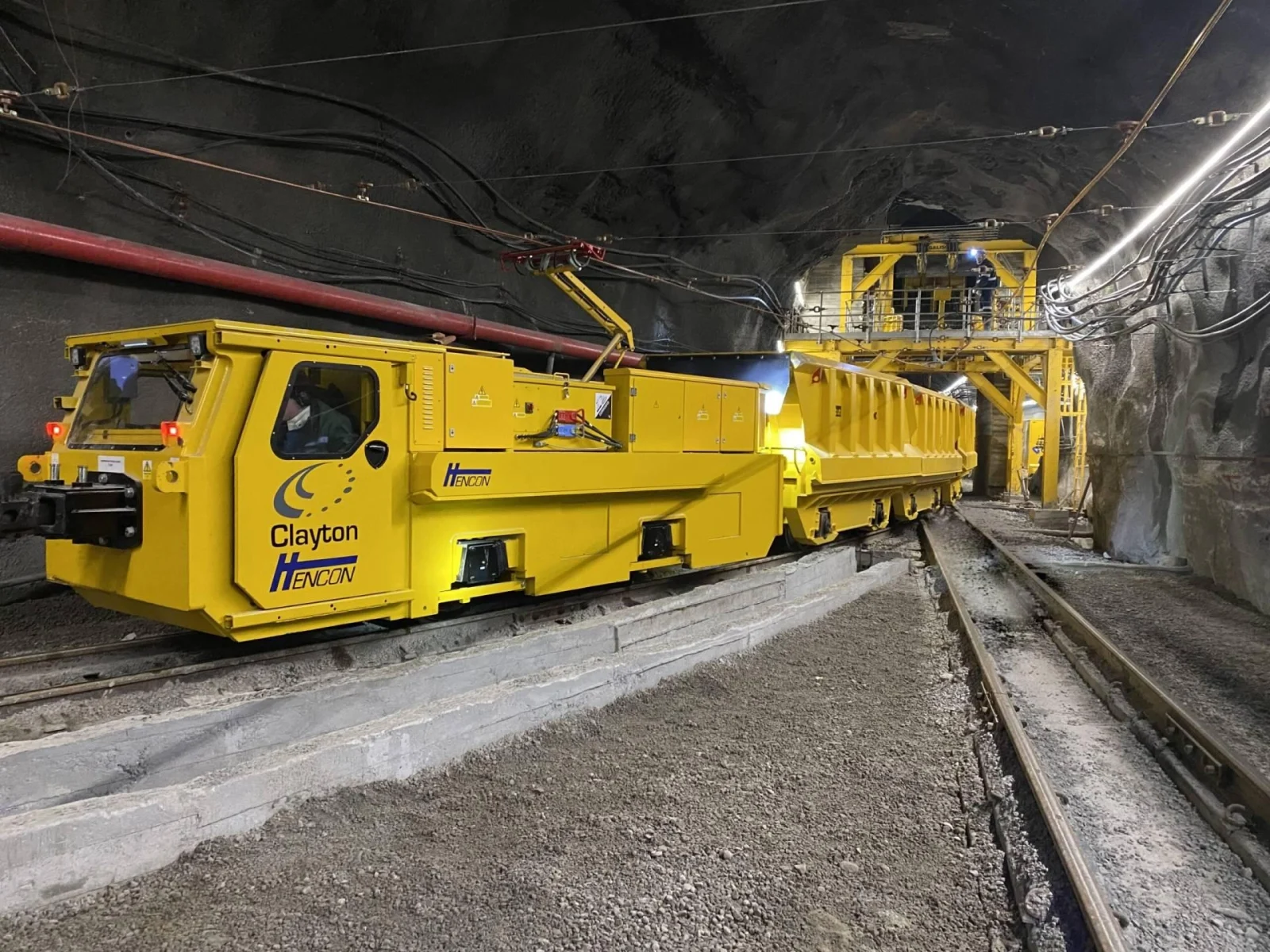

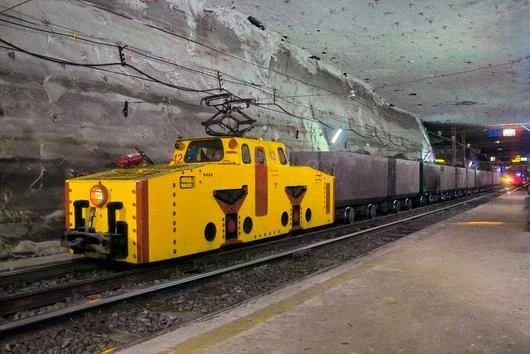

Underground Mining
Supports traction enhancement on underground mining rail networks to help reduce wheel slip and slide and maintain operational productivity.

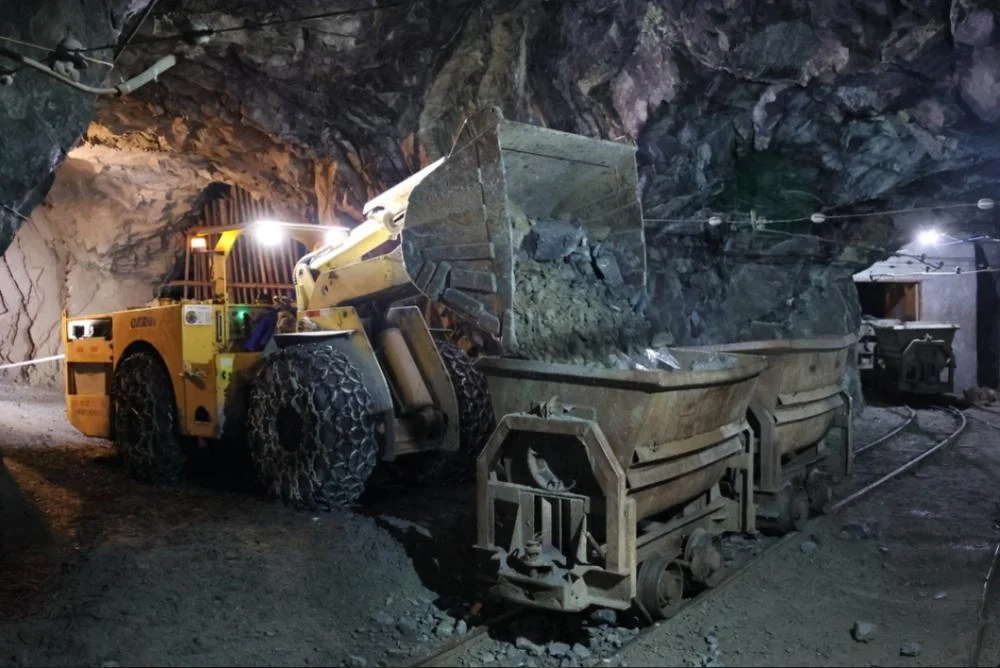

Mining Loading & Unloading Zones
Suitable for critical loading and unloading zones where low adhesion can disrupt locomotive operations.
Rail Inclines & Declines
Helps improve adhesion on ascending or descending track where rail-surface conditions can reduce traction and braking capability.
PRODUCT REFERENCEInformation you can verify.
The details on this page are drawn from the principal's own catalogues and official references.
